Homework 2: ELF files

This assignment will make you more familiar with the organization of ELF files. You can complete it on any operating system that supports the Unix API—for example:

You do not need to set up xv6 for this assignment.

Submit your programs and shell through Gradescope.

YOU CANNOT PUBLICLY RELEASE SOLUTIONS TO THIS HOMEWORK. It’s ok to show your work to your future employer as a private Git repo, however any public release is prohibited.

Using AI + Codex

For this assignment you are allowed to use Codex to implement certain aspects on your code. Refer to HW 1 for instructions on how to get started with Codex.

Part 1: Take a look at ELF files

All files for this homework can be downloaded in hw2-elf.tar.gz.

At a high level this homework first shows you how to implement a simple ELF loader by filling in the gaps in the main.c file. We first ask you to load a simple ELF object file that requires no relocation (i.e., it does not use any global variables or functions)

  1. elf.c (loading, no relocation).

and then ask you to load and relocate another ELF file that needs relocation to run:

  1. elf1.c (requires relocation).

However, before starting on this let’s make ourselves familiar with ELF files.

We provide a simple Makefile that compiles elf_explain.c. Look over the makefile and then run:

make elf_explain

We compile elf_explain with the following flags:

$(CC) -ffreestanding -mcmodel=large -nostdlib -Wl,-pie -Wl,-e,quadruple -o $@ $<

We pass -ffreestanding and -nostdlib to avoid linking against standard libraries and usual C runtime to make everything simpler, but also this is how you compile your kernel that has to boot on bare metal without support from anythign else.

Specifically, we use -nostdlib to tell GCC (and the linker it invokes) not to use the system’s standard startup files and standard libraries when linking. Concretely, it prevents automatic linking of things like: CRT startup objects (often crt1.o, crti.o, crtn.o, etc.) that set up the process before calling main the standard libraries (like libc, libgcc, and friends) that GCC would normally add automatically.

The -ffreestanding flag tells the compiler you’re building for a freestanding environment (like a kernel or embedded/bare-metal program), not a normal hosted userspace program. Here, the compiler must not assume the full hosted C environment exists (in C, the freestanding-required headers are very limited; many library functions like printf, malloc, etc. are not assumed available unless you provide them).

We then use -Wl, <flag> to pass specific flags to the linker. In particular, the -pie flag passed to the linker tells the linker to generate a Position Independent Executable (PIE) that can be loaded at any memory address. We use this flag to make sure that the ELF we get has relocation information (i.e., to load the file at any address the loader will have to relocate it).

Finally, the -mcmodel=large to tell the compiler explicitly to generate absolute 64-bit addresses instead of RIP relative addresses. The default, -mcmodel=small assumes that the code fits in 2GBs, so x86-64 instructions often access code/data using RIP-relative addressing with a 32-bit displacement, which effectively limits what can be reached directly to about +/-2 GiB from the current instruction. Large model tells the compiler that the data section can be anywhere in the address space so it has to use absolute 64bit addresses. We use this flag just to make sure that you can play with relocations, i.e., similar to the lecture you will see that part of the instruction that holds an absolute address needs to be patched (see more below).

Now let’s use readelf to take a look at what’s inside the ELF file:

$ readelf -a elf_explain

ELF is the file format used for object files (.o’s), binaries, shared libraries and core dumps in Linux.

It’s actually pretty simple and well thought-out.

ELF has the same layout for all architectures, however endianness and word size can differ; relocation types, symbol types and the like may have platform-specific values, and of course the contained code is arch specific.

The ELF files are used by two tools: 1) linker and 2) loader. A linker combines multiple ELF files into an executable or a library and a loader loads the executable ELF file in the memory of the process. On real operating systems loading may require relocation (e.g., if the file is dynamically linked it has to be linked again with all the shared libraries it depends on).

Linker and loader need two different views of the ELF file, i.e., they access it differently—the linker needs to know where the DATA, TEXT, BSS, and other sections are to merge them with sections from other libraries. If relocation is required the linker needs to know where the symbol tables and relocation information is.

The loader, however, does not need any of these details. It simply needs to know which parts of the ELF file are code (executable), which are data and read-only data, and where to put the BSS in the memory of a process.

Hence the ELF file provides two separate views on the data inside the ELF file: 1) a more detailed view for the linker, and 2) a bit more high-level view for the loader. To provide these views each ELF file contains two arrays: Section Header Table (for the linker), and Program Header Table (for the loader). Both tables are simply arrays of entries that contain information about each part of the ELF file (e.g., where the sections for the linker and section for the loader are inside the ELF file).

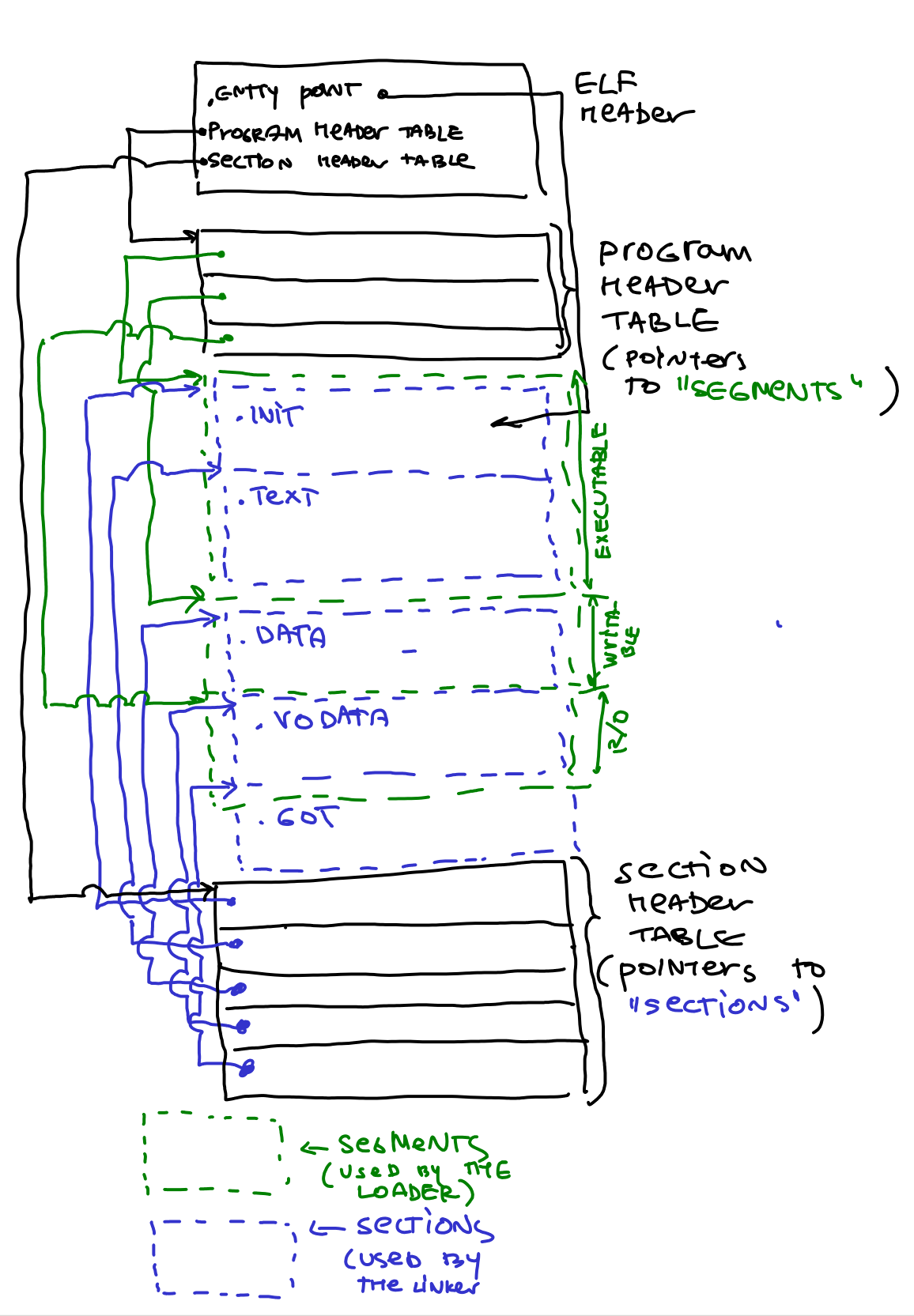

Here is a simple figure of a typical ELF file that starts with the ELF header. The header contains pointers to the locations of Section Header Table and Program Header Table within the ELF file. Then each tables have entries that point to the starting locations of individual sections and segments.

Lets take a look at both arrays.

Linking view: Section Header Table (SHT)

The Section Header Table is an array in which every entry contains a pointer to one of the sections of the ELF file. It’s a bit annoying but the parts of the ELF file used by the linker are called “sections”, and the parts used by the loader are called “segments” (my guess is that different CPU segments were configured in the past for each part of the program loaded in memory, hence the name “segments”, for example, an executable CPU segment was created for the executable parts of the ELF file (i.e., one segment that contained all executable sections like .text, .init, etc.).

Also don’t get confused: sections and segments overlap. I.e., typically multiple sections (.text, .init) are all contained in one executable segment. Confusing, huh? It will become clear soon.

Lets take a look at what inside the ELF file. Run this command


readelf -a elf_explain

If you scroll down to the Section headers you will see all “sections” of the ELF file that the linker can use:

Section Headers:
  [Nr] Name              Type            Address          Off    Size   ES Flg Lk Inf Al
  [ 0]                   NULL            0000000000000000 000000 000000 00      0   0  0
  [ 1] .interp           PROGBITS        0000000000000238 000238 00001c 00   A  0   0  1
  [ 2] .note.gnu.build-id NOTE            0000000000000254 000254 000024 00   A  0   0  4
  [ 3] .gnu.hash         GNU_HASH        0000000000000278 000278 00001c 00   A  4   0  8
  [ 4] .dynsym           DYNSYM          0000000000000298 000298 000018 18   A  5   1  8
  [ 5] .dynstr           STRTAB          00000000000002b0 0002b0 000001 00   A  0   0  1
  [ 6] .rela.dyn         RELA            00000000000002b8 0002b8 000060 18   A  4   0  8
  [ 7] .text             PROGBITS        0000000000000318 000318 00004d 00  AX  0   0  1
  [ 8] .eh_frame_hdr     PROGBITS        0000000000000368 000368 00001c 00   A  0   0  4
  [ 9] .eh_frame         PROGBITS        0000000000000388 000388 000058 00   A  0   0  8
  [10] .dynamic          DYNAMIC         0000000000200ef0 000ef0 000110 10  WA  5   0  8
  [11] .data             PROGBITS        0000000000201000 001000 000008 00  WA  0   0  4
  [12] .bss              NOBITS          0000000000201008 001008 000008 00  WA  0   0  4
  [13] .comment          PROGBITS        0000000000000000 001008 00002d 01  MS  0   0  1
  [14] .symtab           SYMTAB          0000000000000000 001038 000288 18     15  19  8
  [15] .strtab           STRTAB          0000000000000000 0012c0 00006b 00      0   0  1
  [16] .shstrtab         STRTAB          0000000000000000 00132b 000095 00      0   0  1
Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  l (large), p (processor specific)

The elf_explain.c is a simple program, but it still has .text, .data, .bss, and .rel.text (relocation) sections and a bunch of sections that contain symbol information and a ton of other stuff.

elf_explain.c has two initialized and one uninitialized global variables; therefore, the ELF file contains a .data section of 8 bytes for the initialized variables, and a .bss section of 8 bytes, of which 4 bytes are used by the uninitialized variable and the remaining space is added due to alignment and linker padding.

The symbol table contains the following symbols

Symbol table '.symtab' contains 27 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
     1: 0000000000000238     0 SECTION LOCAL  DEFAULT    1
     2: 0000000000000254     0 SECTION LOCAL  DEFAULT    2
     3: 0000000000000278     0 SECTION LOCAL  DEFAULT    3
     4: 0000000000000298     0 SECTION LOCAL  DEFAULT    4
     5: 00000000000002b0     0 SECTION LOCAL  DEFAULT    5
     6: 00000000000002b8     0 SECTION LOCAL  DEFAULT    6
     7: 0000000000000318     0 SECTION LOCAL  DEFAULT    7
     8: 0000000000000368     0 SECTION LOCAL  DEFAULT    8
     9: 0000000000000388     0 SECTION LOCAL  DEFAULT    9
    10: 0000000000200ef0     0 SECTION LOCAL  DEFAULT   10
    11: 0000000000201000     0 SECTION LOCAL  DEFAULT   11
    12: 0000000000201008     0 SECTION LOCAL  DEFAULT   12
    13: 0000000000000000     0 SECTION LOCAL  DEFAULT   13
    14: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS elf_explain.c
    15: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS
    16: 0000000000200ef0     0 OBJECT  LOCAL  DEFAULT   10 _DYNAMIC
    17: 0000000000000368     0 NOTYPE  LOCAL  DEFAULT    8 __GNU_EH_FRAME_HDR
    18: 0000000000201000     0 OBJECT  LOCAL  DEFAULT   11 _GLOBAL_OFFSET_TABLE_
    19: 0000000000201000     4 OBJECT  GLOBAL DEFAULT   11 b
    20: 0000000000000318    56 FUNC    GLOBAL DEFAULT    7 quadruple
    21: 0000000000201004     4 OBJECT  GLOBAL DEFAULT   11 c
    22: 0000000000201008     0 NOTYPE  GLOBAL DEFAULT   12 __bss_start
    23: 0000000000201008     4 OBJECT  GLOBAL DEFAULT   12 d
    24: 0000000000000350    21 FUNC    GLOBAL DEFAULT    7 magic
    25: 0000000000201008     0 NOTYPE  GLOBAL DEFAULT   11 _edata
    26: 0000000000201010     0 NOTYPE  GLOBAL DEFAULT   12 _end

I.e., it contains names of the two functions quadruple and magic, three global variables b, c, and d. Other symbols like __bss_start, _edata, and _end are added by the linker to mark the start and end of the BSS, TEXT, and DATA sections.

Execution view: Program Header Table (PHT)

The Program Header Table contains information for the kernel on how to start the program. The LOAD directives determinate what parts of the ELF file get mapped into program memory.

In our ELF example, the program header lists several segments, but only the two PT_LOAD segments are actually mapped into memory by the operating system as the program’s code and data regions.

Program Headers:
  Type           Offset   VirtAddr           PhysAddr           FileSiz  MemSiz   Flg Align
  PHDR           0x000040 0x0000000000000040 0x0000000000000040 0x0001f8 0x0001f8 R   0x8
  INTERP         0x000238 0x0000000000000238 0x0000000000000238 0x00001c 0x00001c R   0x1
      [Requesting program interpreter: /lib64/ld-linux-x86-64.so.2]
  LOAD           0x000000 0x0000000000000000 0x0000000000000000 0x0003e0 0x0003e0 R E 0x200000
  LOAD           0x000ef0 0x0000000000200ef0 0x0000000000200ef0 0x000118 0x000120 RW  0x200000
  DYNAMIC        0x000ef0 0x0000000000200ef0 0x0000000000200ef0 0x000110 0x000110 RW  0x8
  NOTE           0x000254 0x0000000000000254 0x0000000000000254 0x000024 0x000024 R   0x4
  GNU_EH_FRAME   0x000368 0x0000000000000368 0x0000000000000368 0x00001c 0x00001c R   0x4
  GNU_STACK      0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW  0x10
  GNU_RELRO      0x000ef0 0x0000000000200ef0 0x0000000000200ef0 0x000110 0x000110 R   0x1

The two PT_LOAD segments have virtual addresses 0x0 and 0x200ef0

 Section to Segment mapping:
  Segment Sections...
   00
   01     .interp
   02     .interp .note.gnu.build-id .gnu.hash .dynsym .dynstr .rela.dyn .text .eh_frame_hdr .eh_frame
   03     .dynamic .data .bss
   04     .dynamic
   05     .note.gnu.build-id
   06     .eh_frame_hdr
   07
   08     .dynamic

In other words, inside the first loadable segment the linker placed the following sections: .note.gnu.build-id, .gnu.hash, .dynsym, .dynstr, .rel.text, .text, .eh_frame, .dynamic, .data, and .bss. We can inspect the elf binary with the objdump tool to see what is inside the .text section:

[u1584242@lab1-7 ~/hw2_os]$ objdump -d -M intel elf_explain

elf_explain:     file format elf64-x86-64


Disassembly of section .text:

0000000000000318 <quadruple>:
 318:   55                      push   rbp
 319:   48 89 e5                mov    rbp,rsp
 31c:   89 7d fc                mov    DWORD PTR [rbp-0x4],edi
 31f:   48 b8 04 10 20 00 00    movabs rax,0x201004
 326:   00 00 00
 329:   8b 00                   mov    eax,DWORD PTR [rax]
 32b:   0f af 45 fc             imul   eax,DWORD PTR [rbp-0x4]
 32f:   89 c2                   mov    edx,eax
 331:   48 b8 00 10 20 00 00    movabs rax,0x201000
 338:   00 00 00
 33b:   8b 08                   mov    ecx,DWORD PTR [rax]
 33d:   48 b8 08 10 20 00 00    movabs rax,0x201008
 344:   00 00 00
 347:   8b 00                   mov    eax,DWORD PTR [rax]
 349:   0f af c1                imul   eax,ecx
 34c:   01 d0                   add    eax,edx
 34e:   5d                      pop    rbp
 34f:   c3                      ret

0000000000000350 <magic>:
 350:   55                      push   rbp
 351:   48 89 e5                mov    rbp,rsp
 354:   48 b8 00 10 20 00 00    movabs rax,0x201000
 35b:   00 00 00
 35e:   8b 00                   mov    eax,DWORD PTR [rax]
 360:   6b c0 0e                imul   eax,eax,0xe
 363:   5d                      pop    rbp
 364:   c3                      ret

Well, no surprises here. It is the code of the two functions we defined in elf_explain.c. The interesting part is how the code accesses global variables. Because we compile elf_explain with -mcmodel=large, the compiler often uses an addressing mode where it loads a full absolute address into a register and then dereferences it, instead of using RIP-relative addressing.

For example, in the disassembly you can see this pattern:

 354:   48 b8 00 10 20 00 00    movabs rax,0x201000 ; load absolute address of b
 35b:   00 00 00                                    ; it's 64 bits

Here it would be interesting to compare the disassembly under our current build flags. For elf_explain, we compile with -mcmodel=large and link as PIE (-Wl,-pie). With the large code model, the compiler often loads full 64-bit absolute addresses into registers (e.g., movabs rax, 0x...) when referencing globals, which is why you may see fixed-looking addresses in the .text section. If we remove -mcmodel=large (and/or build with PIC-friendly settings), the compiler can usually access globals using RIP-relative addressing like [rip + offset] (often this RIP relative address will point into GOT but not always, you can force the compiler to generate RIP relative addresses that will directly go into the data section, for example linker might even “relax” or optimize memory accesses at link time to make sure they bypass GOT and hit the data section directly for the local symbols, i.e., global variables that are provided by the data section in the same file) and avoids fixed 64-bit addresses in the instruction stream. This is the main idea behind position-independent code. Read more about this in the Eli Bendersky’s blog post on Position Independent Code (PIC) in shared libraries on x64

Putting it all together: the ELF header

Neither the SHT nor the PHT have fixed positions, they can be located anywhere in an ELF file. To find them the ELF header is used, which is located at the very start of the file.

The first bytes contain the elf magic "\x7fELF", followed by the class ID (32 or 64 bit ELF file), the data format ID (little endian/big endian), the machine type, etc.

At the end of the ELF header are then pointers to the SHT and PHT. Specifically, the Section Header Table which is used by the linker starts at byte 5056 in the ELF file, and the Program Header Table starts at byte 64 (right after the ELF header)

ELF Header:
  Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF64
  Data:                              2's complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              DYN (Shared object file)
  Machine:                           Advanced Micro Devices X86-64
  Version:                           0x1
  Entry point address:               0x318
  Start of program headers:          64 (bytes into file)
  Start of section headers:          5056 (bytes into file)
  Flags:                             0x0
  Size of this header:               64 (bytes)
  Size of program headers:           56 (bytes)
  Number of program headers:         9
  Size of section headers:           64 (bytes)
  Number of section headers:         17
  Section header string table index: 16

The entry point of this file is at address 0x318. This is exactly what we told the linker to do — make the function quadruple the entry point (this is done with the following directive to the linker from the Makefile -e quadruple).

You might ask a question: why are we making the quadruple() function to be the entry point? Or in other words, why do we pick it instead of main()? The reason is that it gives us the way to know where quadruple() is in the text section so we can invoke it right after loading the file. Without making it an entry point we would have to read the symbol table which is doable but would take some additional time.

Program loading in the kernel

The execution of a program starts inside the kernel, in the exec("/bin/wc",...) system call takes a path to the executable file. The kernel reads the ELF header and the program header table (PHT), followed by lots of sanity checks.

The kernel then loads the parts specified in the LOAD directives in the PHT into memory. If an INTERP entry is present, the interpreter is loaded too. Statically linked binaries can do without an interpreter; dynamically linked programs always need /lib/ld-linux.so as interpreter because it includes some startup code, loads shared libraries needed by the binary, and performs relocations.

Finally control can be transferred to the entry point of the program or to the interpreter, if linking is required.

In case of a statically linked binary that’s pretty much it, however with dynamically linked binaries a lot more magic has to go on.

First the dynamic linker (contained within the interpreter) looks at the .dynamic section, whose address is stored in the PHT.

There it finds the NEEDED entries determining which libraries have to be loaded before the program can be run, the REL entries giving the address of the relocation tables, the VER* entries which contain symbol versioning information, etc.

So the dynamic linker loads the needed libraries and performs relocations (either directly at program startup or later, as soon as the relocated symbol is needed, depending on the relocation type).

Finally control is transferred to the address given by the symbol _start in the binary. Normally some gcc/glibc startup code lives there, which in the end calls main().

Part 1: Build a simple ELF loader

Example: load an ELF file

In this part of the assignment, your task is to build the ELF loader. Use main.c as a template that provides required header files, structure definitions, and some helper functions and extend it with the functionality of the loader.

Specifically, we ask you to load an ELF file like elf which you can compile from elf.c using our Makefile or the same compilation flags.

While ELF might look a bit intimidating, in practice the loading algorithm is rather simple:

First we create a very simple ELF file out of elf.c — it contains only one function, it has no data, and the code can be placed anywhere in memory and will run ok (it simply does not refer to any global addresses — all variables are on the stack).

Then we do a loop through all loadable segments of the file and find the min and max virtual addresses at which the sections can be loaded. Segments can be out-of-order with respect to their virtual addresses and we want to know the range of the addresses that will be used in the end.

for (int i = 0; i < elf.e_phnum; ++i) {
    if (phs[i].p_type != PT_LOAD) continue;
    if (phs[i].p_vaddr < min_vaddr){
        // TO DO...
    }
    if (phs[i].p_vaddr + phs[i].p_memsz > max_vaddr){
        // TO DO...
    }
}

To load the segment in memory, we use mmap to get an executable memory from the OS. You can man mmap to read more.

code_va = mmap(NULL, page_align(max_vaddr - min_vaddr),
                     PROT_READ | PROT_WRITE | PROT_EXEC,
                     MAP_ANONYMOUS | MAP_PRIVATE, 0, 0);

Now let us load all the loadable program segments

for (int i = 0; i < elf.e_phnum; i++) {
    if (phs[i].p_type != PT_LOAD) continue;
    void *seg = (uint8_t *)load_base + (phs[i].p_vaddr - min_vaddr);

    fseek(f, phs[i].p_offset, SEEK_SET);
    fread(seg, 1, phs[i].p_filesz, f);

    if (phs[i].p_memsz > phs[i].p_filesz) {
      // TO DO...
    }
}
free(phs);

You should figure out where the entry point of your program is (it is in one of the segments, and since you map the segments at the addresses returned by the mmap() function, you need to find where it ends up in your address space.

If you found the entry point then type cast it to the function pointer that matches the function signature of the sum function and call it.

if (entry_point) {
    add = entry_point;
    ret = add(1, 2);
    printf("add:%d\n", ret);
}

At this point you should be able to build and run your program like

./main elf

and if everything is good you should see the correct result for the add function.

Part 2: Explain the Crash

Now, you basic loader is working, so our next step is to dig deeper into relocation. To understand what is involved, run your loader on the elf1 which you should compile from elf1.c. Specifically, use our Makefile

make elf1

Or make sure you use the same flags as mentioned in the Makefile. In contrast to elf, elf1 uses global variables and hence to run successfully it needs to be relocated. If you invoke your loader on elf1 it will either crash or compute a wrong result.

Before working on relocation we ask you to use a debugger (in a disassembly mode) to explain:

Submit your explanation as explain.(txt/md/pdf)

Debugging with VS Code or GDB

VS Code

./main elf1 either crashed or computed the wrong result. Specifically, you should start the program using Visual Studio debugger as we did for HW01.

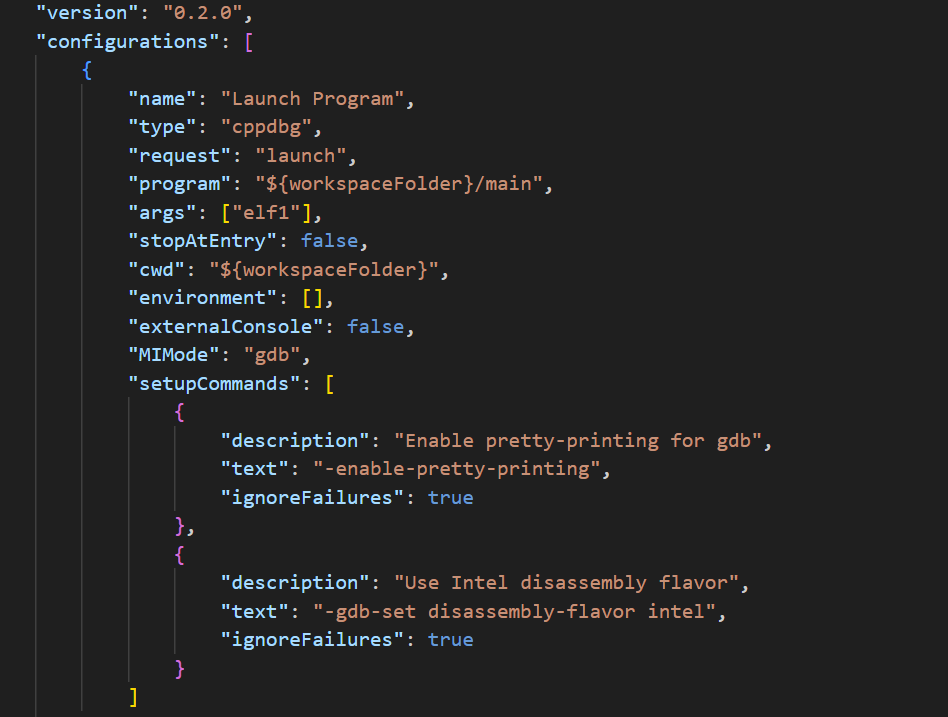

Pass elf1 as input to args in the launch.json file as shown in the image below. Update the program and cwd fields to the respective directory where you have main.c and other files to execute.

Refer to HW01 for how to set a breakpoint on main and start the program using VS debugger.

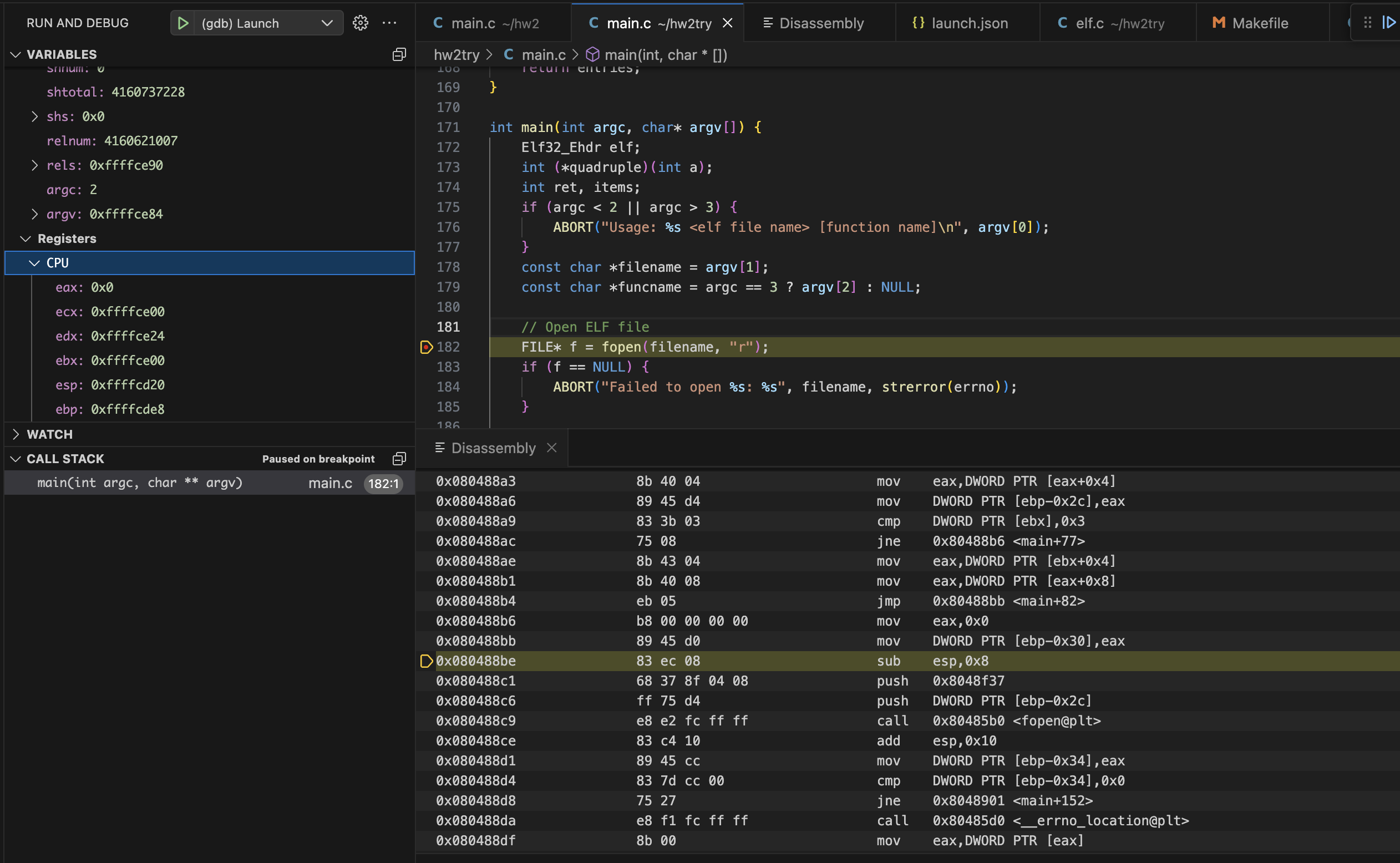

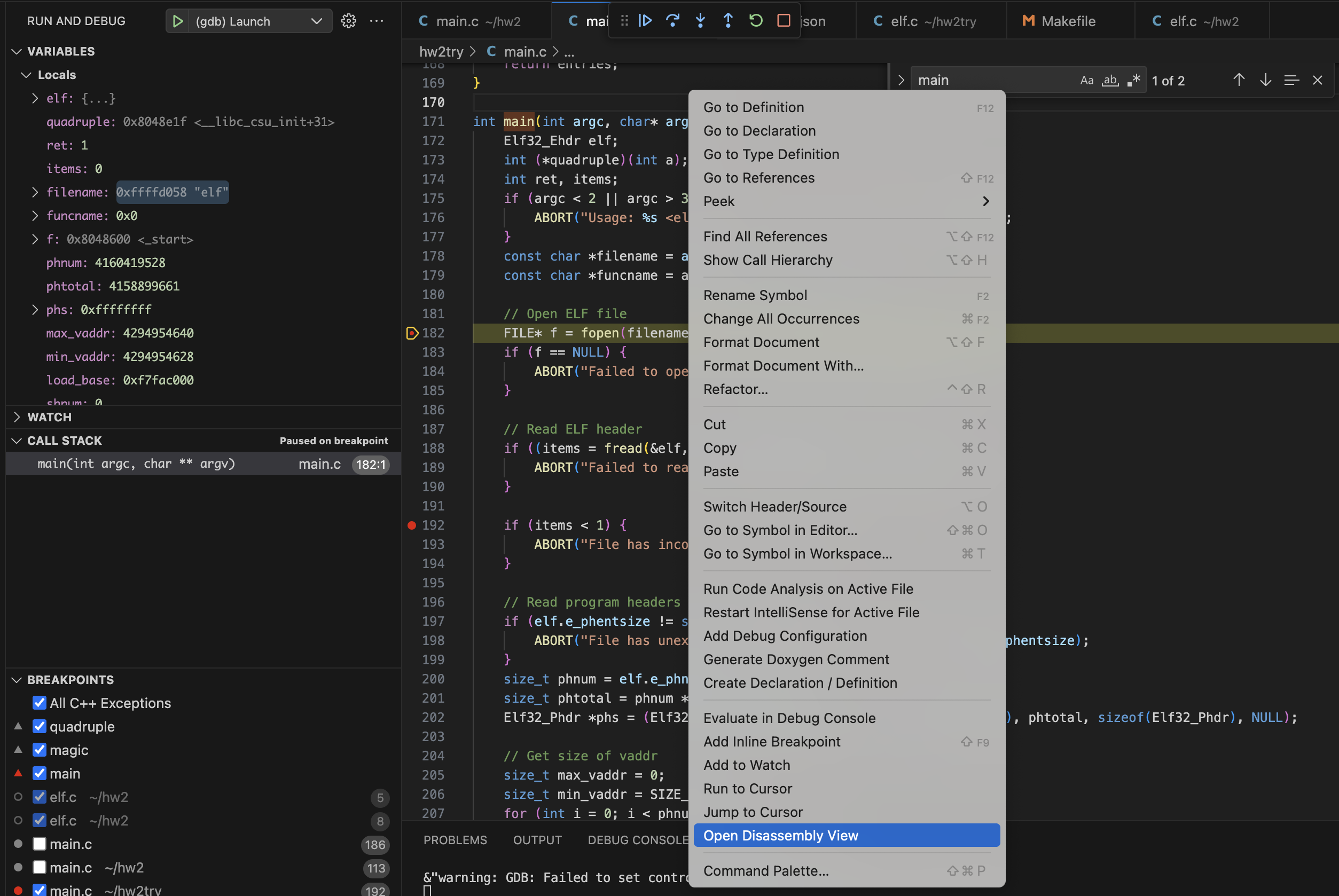

Once debugging has started, right-click anywhere in the file and select Open Disassembly View as shown in the image below to view the assembly code and source code side by side.

Register information can also be viewed under the variables section on the top left of the window as shown in the above image.

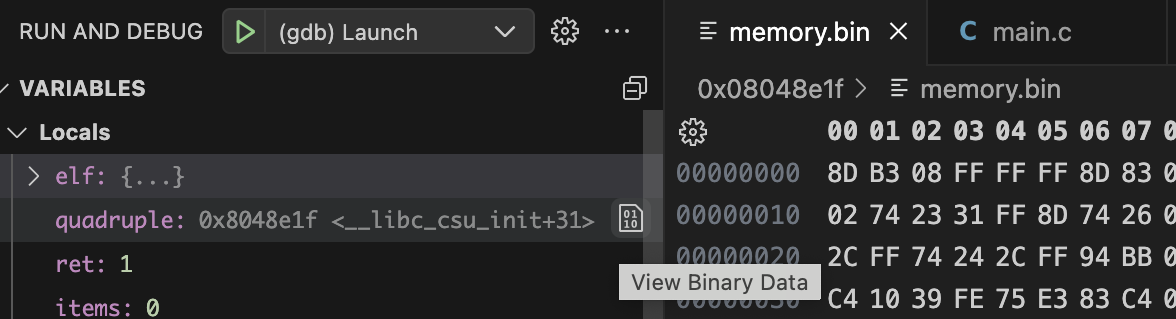

Clicking the small icon on any of the variables will display the binary data (aka “memory”) as shown in the image below.

One interesting wrinkle here that you might notice that VScode refuses to step into the code that you loaded from elf1 i.e., you reach the

call rax

instruction that calls the entry point of the elf1 but vscode instead of stepping in simply segfaults. This is a bit annoying but can be understood – vscode does not step into code sections for which it does not have symbols and since elf1 was loaded from a completely different file it has no idea what is going on there.

We can however force it to step into elf1 by talking to the debug console directly and sending direct commands to GDB (VScode uses GDB underneath and you can send it direct commands). From the debug console do something like

-exec si

Here si is a “step instruction” command for GDB and GDB will execute it. Well, now let’s check if we’re really executing bits of elf1 or the linear_transform() function. We need to disassemble instructions right under the program counter (RIP register). GDB can do this so send this command which asks GDB to sidassemble 32 bytes of memory under the program counter:

-exec disassemble $pc, $pc+32

You can compare it with the disassembly produced by the objdump of the elf1 like

objdump -d -M intel elf1

Surprise! It’s the same machine code so you’re actually single stepping instructions from the linear_transform() function. Now single step more and see which instruction crashes or accesses invalid data. Now you have all the info to explain the crash.

GDB Debug Instructions

You can debug the Part 2 crash directly in terminal GDB.

  1. Build and start GDB, passing elf1 as the argument to main:
make main elf1
gdb --args ./main elf1

--args is important: it tells GDB to run ./main and pass elf1 to argv[1].

  1. In GDB, switch to Intel syntax and run:
set disassembly-flavor intel
run

You should see Loaded binary and then a SIGSEGV.

  1. Inspect the crash location and nearby instructions:
x/i $rip
x/10i $rip
  1. Inspect registers:
info registers
  1. Compare what GDB is executing with elf1’s disassembly:
objdump -d -M intel elf1

Part 3: Perform Relocation

Ok now we are ready to perform relocation and compute the result of linear_transform(5), a function that accesses global variables!

Same as above, use our Makefile to build elf1

Note (Toolchain check): Before you start, confirm that your build environment produces the relocation entries. Over the years the GCC toolchain changed back and forth, we checked that our flags work on CADE (gcc 8.5) and on recent versions of GCC (like 15.2) but we also seen versions that generate code without the relocation entries. Specifically, you need to make sure that elf1 has R_X86_64_RELATIVE entries.

Rebuild elf1 using the exact flags from the provided Makefile, then inspect the relocations with:

readelf -rW elf1.

manvik@DESKTOP-KSD9ND5:~/classes/os/hw2$ readelf -rW elf1

Relocation section '.rela.text' at offset 0x218 contains 3 entries:
    Offset             Info             Type               Symbol's Value  Symbol's Name + Addend
000000000040026d  0000000000000008 R_X86_64_RELATIVE                         4003b4
000000000040027f  0000000000000008 R_X86_64_RELATIVE                         4003b0
000000000040028b  0000000000000008 R_X86_64_RELATIVE                         4003b8

If you don’t see any R_X86_64_RELATIVE relocations, you’re likely using a compiler/linker version that emits a different relocation pattern for these flags. In that case, please build and test on the CADE machines, which have a known-good toolchain configuration that produces the expected R_X86_64_RELATIVE entries with the provided compilation flags.

Our goal is to learn how to relocate a binary. In the step above we loaded the binary in memory, but it crashes as it was linked to run at an address which is different from the one we loaded it at. Below we will relocate elf1 to run correctly by patching all references to the global variables.

Let us start by loading the ELF section header table into memory used for relocation.

Elf64_Shdr *shs =
        load_multiple(f, elf.e_shoff, elf.e_shnum * sizeof(Elf64_Shdr), sizeof(Elf64_Shdr), NULL);

Next, we iterate over all section headers to locate and load relocation tables, the symbol table, and the associated string table.

for (int i = 0; i < elf.e_shnum; i++) {
  Elf64_Shdr *sh = shs + i;
  switch (sh->sh_type) {
    case SHT_RELA:
      // TO DO...
    case SHT_REL:
      // TO DO...
    case SHT_SYMTAB:
      // TO DO...
    case SHT_STRTAB:
      // TO DO...
  }
}

The section table contains a number of entries that contain various information used by the linker (as we discussed above). Specifically, each entry has the following C type definition:

// ### Section Header
typedef struct {
    uint32_t sh_name;
    uint32_t sh_type;
    uint64_t sh_flags;
    uint64_t sh_addr;
    uint64_t sh_offset;
    uint64_t sh_size;
    uint32_t sh_link;
    uint32_t sh_info;
    uint64_t sh_addralign;
    uint64_t sh_entsize;
} Elf64_Shdr;

The sh_type defines the type of the entry. The following types are defined by the ELF standard (we only list a subset of types we need in this homework, see ELF standard for a complete list):

#define SHT_SYMTAB  2 // Symbol table
#define SHT_STRTAB  3 // String table
#define SHT_RELA    4 // Relocation entries with addends
#define SHT_REL     9 // Relocation entries without addends

To relocate a file we will have to iterate through all section header entries of our ELF file and pick the one that has the SHT_REL type. Relocation entires in the table are continuous and the number of entries in a given table can be found by dividing the size of the table (given by sh_size in the section header) by the size of each entry (given by sh_entsize).

Each relocation entry has the following type:

// ### Relocation Entry
typedef struct {
    uint64_t r_offset;
    uint64_t r_info;
} Elf64_Rel;

The value stored in r_info, as the upper byte designates the entry in the symbol table to which the relocation applies, whereas the lower byte stores the type of relocation that should be applied.

#define ELF64_R_TYPE(val) ((val) & 0xffffffff)
#define ELF64_R_SYM(val)  ((val) >> 32)

We use the following macros to access type and symbol table entry. The value in r_offset gives the relative position of the symbol that is being relocated, within its section.

The real messy part about relocation is that there can be different kinds of relocation actions. You can find the complete list defined by the ELF standard here: x64: Relocation Types.

In our example, the elf is compiled to require the R_X86_64_RELATIVE relocation. Specifically, this relocation type just asks you to read the value (addend) from the relocation address specified by the r_offset field of the relocation entry and add it to the base address at which the ELF is loaded. This is simple – no need to access the symbol table, just read the value that is already there, add the base address and write it back.

Just to illustrate it with an example of relocating the access to b in the magic function (elf_explain.c):

00000000004002b4 <magic>:
  4002b4:       f3 0f 1e fa             endbr64
  4002b8:       55                      push   rbp
  4002b9:       48 89 e5                mov    rbp,rsp
  4002bc:       48 b8 e0 03 40 00 00    movabs rax,0x4003e0
  4002c3:       00 00 00
  4002c6:       8b 00                   mov    eax,DWORD PTR [rax]
  4002c8:       6b c0 0e                imul   eax,eax,0xe
  4002cb:       5d                      pop    rbp
  4002cc:       c3                      ret

Right now b is in the data section at address 0x4003e0. You can see the compiler generates movabs because it knows that this address will need to be patched by the loader depending on where your program is loaded. The relocation table contains the following entries

readelf -r elf_explain

Relocation section '.rela.text' at offset 0x218 contains 4 entries:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000400285  000000000008 R_X86_64_RELATIVE                    4003e4
000000400297  000000000008 R_X86_64_RELATIVE                    4003e0
0000004002a3  000000000008 R_X86_64_RELATIVE                    4003e8
0000004002be  000000000008 R_X86_64_RELATIVE

Relocation section tells us that at address 0x4002be we need to patch an address. Since we loaded it at address we’ve got from mmap() (i.e., the load_base in our code) we will relocate by (load_base - min_vaddr). Also, note that the offsets are in the virtual address space of the program, but since we loaded the segments starting from load_base you have to compute the correct offsets making sure they point into the loaded code in memory.

We are finally ready to apply relocations….

uint64_t delta = (uint64_t)load_base - min_vaddr;  // This gives us where the ELF was actually loaded

Apply all the necessary relocations. R_X86_64_RELATIVE require you to rewrite with load location plus some addend. Note: You might have to first find out where an address needs to be patches before patching it.

if (relas) {
    for (size_t j = 0; j < relanum; ++j) {
        if (type == R_X86_64_RELATIVE) {
            // Apply relocations
        }
    }
    free(relas);
}
fclose(f); // Remember to close your file

Now you can load successfully load elf1 binary and call linear_transform(5) similar to add(1,2) in elf.c.

if (entry_point) {
    linear_transform = entry_point;
    ret = linear_transform(5);
    printf("linear_transform'd to :%d\n", ret);
}

If everything goes well, you can see the result of linear_transform(5), make sure to check it with different arguments are verify your result.

Part 4: (Extra Credit, 10%):

For extra credit, extend your loader to support position-independent code (PIC). To do this, compile the input binary elf_extra_credit.c. In this case, the compiler will generate RIP-relative memory accesses that go through the Global Offset Table (GOT) instead of using absolute addresses.

After compiling the input program (elf_extra_credit.c) as position-independent code and disassembling using objdump -d -rR -M intel elf_extra_credit

elf1:     file format elf64-x86-64

Disassembly of section .text:

0000000000001000 <linear_transform>:
    1000:       f3 0f 1e fa             endbr64
    1004:       55                      push   rbp
    1005:       48 89 e5                mov    rbp,rsp
    1008:       89 7d fc                mov    DWORD PTR [rbp-0x4],edi
    100b:       48 8b 05 de 2f 00 00    mov    rax,QWORD PTR [rip+0x2fde]        # 3ff0 <_GLOBAL_OFFSET_TABLE_+0x20>
    1012:       8b 00                   mov    eax,DWORD PTR [rax]
    1014:       0f af 45 fc             imul   eax,DWORD PTR [rbp-0x4]
    1018:       89 c1                   mov    ecx,eax
    101a:       48 8b 05 c7 2f 00 00    mov    rax,QWORD PTR [rip+0x2fc7]        # 3fe8 <_GLOBAL_OFFSET_TABLE_+0x18>
    1021:       8b 10                   mov    edx,DWORD PTR [rax]
    1023:       48 8b 05 ce 2f 00 00    mov    rax,QWORD PTR [rip+0x2fce]        # 3ff8 <_GLOBAL_OFFSET_TABLE_+0x28>
    102a:       8b 00                   mov    eax,DWORD PTR [rax]
    102c:       0f af c2                imul   eax,edx
    102f:       01 c8                   add    eax,ecx
    1031:       5d                      pop    rbp
    1032:       c3                      ret

You see, In this code, all global variable accesses go through the Global Offset Table. First, a RIP-relative load retrieves a pointer from the GOT. Second, the program dereferences that pointer to obtain the actual value of the global variable. This indirection is required because the final runtime addresses of global symbols are not known at compile time and may vary depending on where the binary is loaded.

When loading such a binary, the GOT will initially contain unresolved entries. Your loader must identify the GOT and apply the appropriate relocations so that each entry points to the correct runtime address. Once the GOT is properly populated, the PIC code should execute correctly from any load address.

Linker Flags and Their Purpose Another thing to note here is that the flags we have used to compile elf_extra_credit.c

The -Wl, prefix is required to pass options directly to the linker. In particular, the –no-relax flag instructs the linker to disable relaxation optimizations. On x86-64, the linker normally attempts to optimize PIC code by removing unnecessary GOT indirections when it can prove that a symbol is local and non-interposable. This optimization can rewrite GOT-based accesses into direct RIP-relative memory references.

When submitting your extra credit provide a detailed explanation for how your solution works as explain-extra1.{txt,md,pdf}.

Part 5: (Extra Credit 2, 30%):

Finally, this last extra credit, asks you to relocate an undefined symbol. Specifically, we change elf_extra_credit.c in such a manner that one of the global variables is defined as extern, see elf_extra_credit2.c and is provided in another file elf_extra_credit2lib.c.

We combile both files with absolute addresses (this is a little easier, as if you try to use position independent code, the GOT is undefined at the compilation step and you will have to figure out how to define it).

After compiling the input program elf_extra_credit2.c and disassembling using objdump -d -r -M intel elf_extra_credit2.o

elf_extra_credit2.o:     file format elf64-x86-64


Disassembly of section .text:

0000000000000000 <linear_transform>:
   0:   55                      push   rbp
   1:   48 89 e5                mov    rbp,rsp
   4:   89 7d fc                mov    DWORD PTR [rbp-0x4],edi
   7:   48 b8 00 00 00 00 00    movabs rax,0x0
   e:   00 00 00
                        9: R_X86_64_64  c
  11:   8b 00                   mov    eax,DWORD PTR [rax]
  13:   0f af 45 fc             imul   eax,DWORD PTR [rbp-0x4]
  17:   89 c2                   mov    edx,eax
  19:   48 b8 00 00 00 00 00    movabs rax,0x0
  20:   00 00 00
                        1b: R_X86_64_64 b
  23:   8b 08                   mov    ecx,DWORD PTR [rax]
  25:   48 b8 00 00 00 00 00    movabs rax,0x0
  2c:   00 00 00
                        27: R_X86_64_64 d
  2f:   8b 00                   mov    eax,DWORD PTR [rax]
  31:   0f af c1                imul   eax,ecx
  34:   01 d0                   add    eax,edx
  36:   5d                      pop    rbp
  37:   c3                      ret

None of the addresses of c, b and d are known (the relocation entry is R_X86_64_64). Moreover if you use readelf:

readelf -a elf_extra_credit2.o

Symbol table '.symtab' contains 12 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
     1: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS elf_extra_credit2.c
     2: 0000000000000000     0 SECTION LOCAL  DEFAULT    1
     3: 0000000000000000     0 SECTION LOCAL  DEFAULT    3
     4: 0000000000000000     0 SECTION LOCAL  DEFAULT    4
     5: 0000000000000000     0 SECTION LOCAL  DEFAULT    6
     6: 0000000000000000     0 SECTION LOCAL  DEFAULT    7
     7: 0000000000000000     0 SECTION LOCAL  DEFAULT    5
     8: 0000000000000000     4 OBJECT  GLOBAL DEFAULT    3 c
     9: 0000000000000004     4 OBJECT  GLOBAL DEFAULT  COM d
    10: 0000000000000000    56 FUNC    GLOBAL DEFAULT    1 linear_transform
    11: 0000000000000000     0 NOTYPE  GLOBAL DEFAULT  UND b

c and d are in the data section at offsets 0 and 4, but b shows up as undefined. It’s defined in elf_extra_credit2lib.o.

Your goal is to load both ELF files into memory, go through relocation entries and the symbol table (.symtab) to figure out where the symbols are in memory and relocatre them correctly. You should also figure out how to use the symbol table to invoke the linear_transform() function. You code should run like this and compute the linear transform function correctly:

main2 elf_extra_credit2.o elf_extra_credit2lib.o

And then call linear_transform() inside main2:

ret = linear_transform(10);
printf("linear_transform'd to :%d\n", ret);

Submit your work

Submit your solution through Gradescope. Please zip all of your files as mentioned below and submit them. The structure of the zip file should be the following:

  - main.c
  - explain.{txt,md,pdf}
  - explain-extra1.{txt,md,pdf}
  - main2.c

Updated: February, 2026
